BioSafe-AIR series compact ULT freezers allow users to store biological products with more flexibility. MDF-86U50
is a desk-top model, while MDF-86U100 is an under-counter freezer. Both 2 models are stackable.
These freezers are equipped with advanced variable speed (inverter) compressors. Compared with traditional fixed
speed compressors, they are more silent, and more energy saving.
TC-300A Controller
Microprocessor electronic controller TC-300A, fitted with dual LED screen to display inner chamber temperature and key working conditions. Advanced dual sensor control system for accurate temperature control.
Performance
1. Variable speed (inverter) compressor achieving higher efficiency
2. V.I.P. (vacuum insulation panel) for excellent insulation
3. Honeywell Solstice® liquid blowing agent (LBA) for better insulation
4. Forming inner door(s) with door seal for better insulation
Alarms
1. High temperature
2. Low temperature
3. High ambient temperature
4. Door open
5. Power failure
6. Sensor error
7. High condenser alarm
8. Low battery
| Model | MDF-86U50 | MDF-86U100 | |
| Main specifications | Type | Upright, desk-top | Upright, under-counter |
| Stackable | ● | ● | |
| Cooling technology | Single compressor, vairable speed | Single compressor, vairable speed | |
| Temperature setting range (°C) | -40~-86 | -40~-86 | |
| Climate type | N | N | |
| Capacity (L) | 58L | 100L | |
| 2" box storage Qty (Pcs) | 30 | 60 | |
| Net weight (KGs) | 78 | 97 | |
| Intermal W×D×H (mm) | 340x460x364 | 340x460x630 | |
| Extermal W×D×H (mm) | 760x680x550 | 760x680x818 | |
| Door entrance limit (≥mm) | 680 | 680 | |
| Cooling type | Direct | Direct | |
| Defrost | Manual | Manual | |
| Refrigerant | Mixed gas | Mixed gas | |
| Number of compressor | 1 | 1 | |
| Control & display system | Controller | TC-300A | TC-300A |
| Display | LED | LED | |
| Temperature display accuracy | 0.1 | 0.1 | |
| Password protection | ● | ● | |
| Power | Power supply (V/Hz) | 110V,50/60Hz；220V,50/60Hz | 110V,50/60Hz；220V,50/60Hz |
| Rated power (W) | 450 | 450 | |
| Rated current (A) | 110V/5.0A 220V/2.5A | 110V/5.0A 220V/2.5A | |
| Data memory & monitoring | USB port | ● | ● |

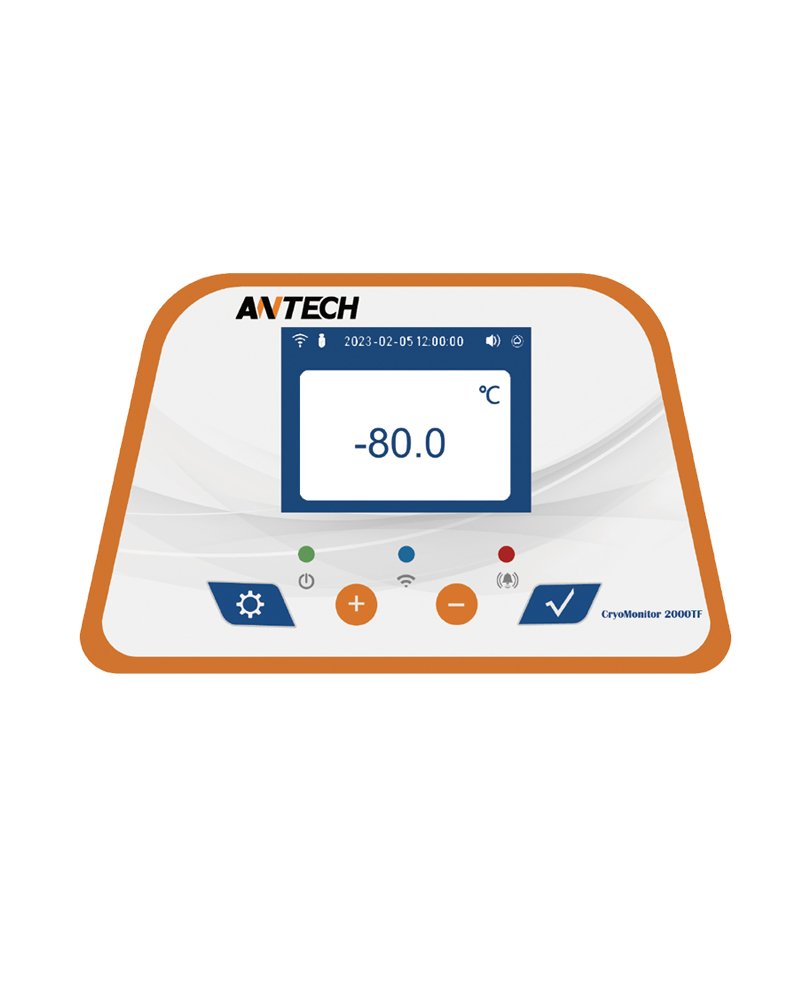

| Cloud monitoring (Wi-Fi) | ○ CryoMonitor 2000TF | ○ CryoMonitor 2000TF | |
| Visible/audible alarm | ● | ● | |
| Alarm functions | High/Low temperature | ● | ● |
| Hot condenser | ● | ● | |
| Power failure | ● | ● | |
| Sensor failure | ● | ● | |
| High ambient temperature | ● | ● | |
| Door open | ● | ● | |
| Remote alarm contact | ● | ● | |
| Accessories | Inner forming door | 1 | 2 |
| Adjustable foot | 4 | 4 | |
| Scroll wheel | N/A | 2 | |
| Stackable kit | ○ | ○ | |
| Test access port | 1 | 1 | |
| Adjustable shelves | 1 | 1 | |
| Safety door lock | ● | ● | |
| Pressure equalization port | ● | ● | |
| Freezer rack | ○ | ○ | |
| Rack type (DxH) | 5x3 | 5x3 | |
| Rack Qty | 2 | 4 | |

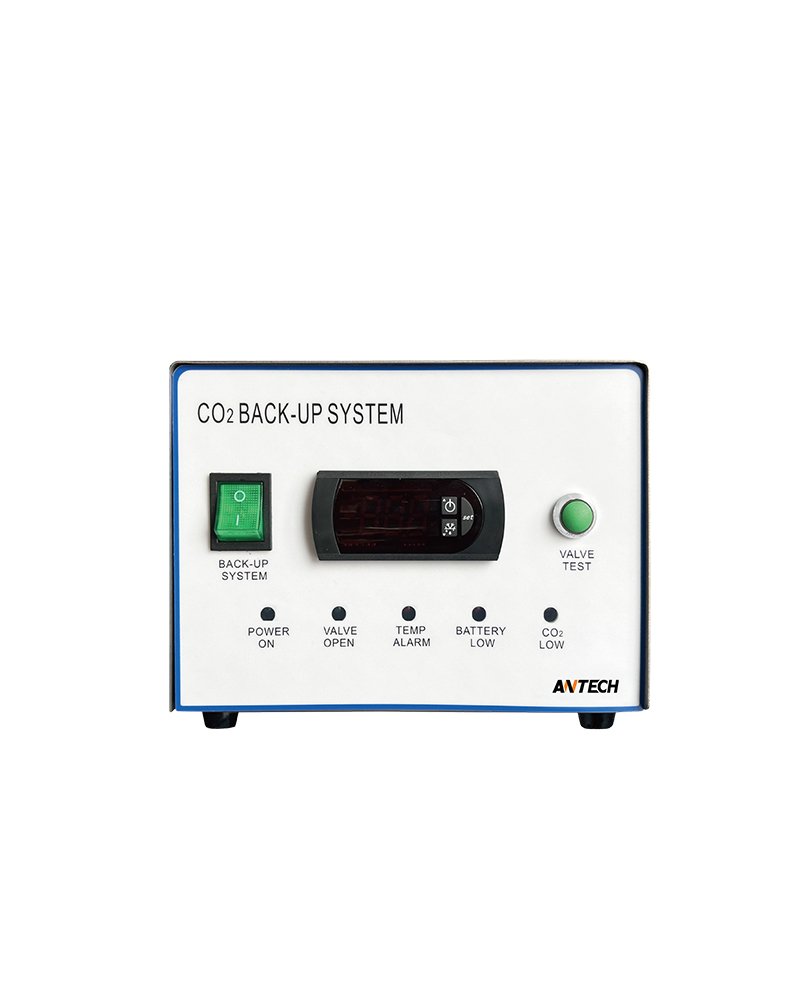

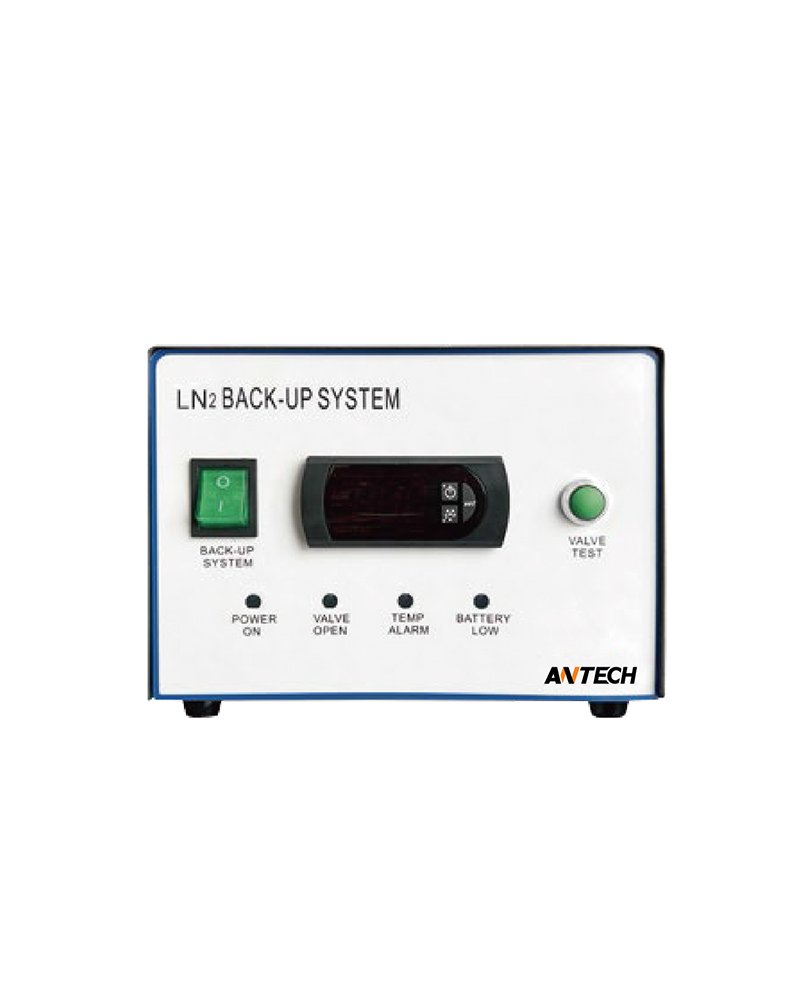

| CO2/LN2 backup system | ○ | ○ | |
| Material | Exterior | Powder coated galvanized steel sheet | Powder coated galvanized steel sheet |
| Interior | Stainless steel | Stainless steel | |
| Insulation | Polyurethane+LBA | Polyurethane+LBA | |
| Vacuum insulation panel (VIP) | ● | ● | |
| Cabinet insulation thickness (mm) | 80 | 80 | |
| Outer door thinkness (mm) | 80 | 80 |
