CryoPump 2000A is an automatic liquid nitrogen discharging system, to discharge liquid nitrogen from dewar to the application.
CryoPump 2000A is an ideal device to cool detectors of Bruker or Shimadzu Fourier Transform Infrared Spectrometer (FTIR), and compatible with most FTIR detectors.
Features
1. Time interval can be preset for automatic fill
2. Gentle liquid nitrogen flow, free of splashing or vibration
3. No direct contact with liquid nitrogen for safety
4. Full automatic control for easy operation
5. Low evaporation rate during standby
6. Can be connected to a computer for monitoring and data record
7. Compatible with Antech 35L ~ 120L liquid nitrogen dewar

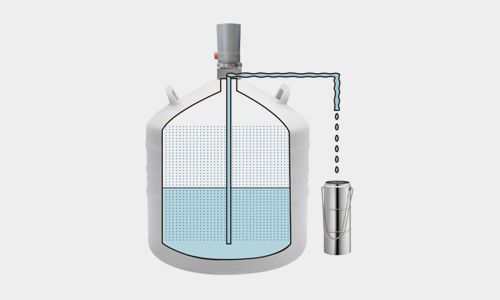

Working principle
By heating liquid nitrogen in bottom of the dewar, an overpressure is
built inside of dewar, to allow liquid nitrogen rise out of the pipeline
and create a gentle liquid flow.
Filling time interval is adjustable, to match holdover time of detector.
The filling flow is stable and gentle. As soon as the detector is full,
the filling stops.
Controlling System

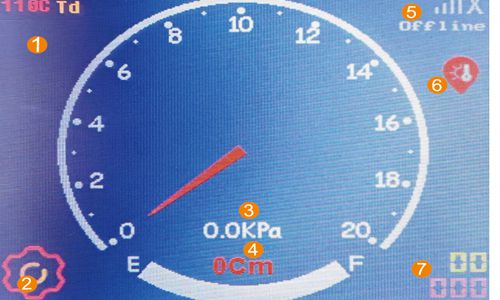

Touch screen controller on top of pump, displaying running statu s. All parameters can be set on touch screen,
which is convenient to use.
1.Temperature at bottom of container
2.Inner pressure
3.Time of discharging
4.Liquid nitrogen level
5.Number of circles
6.Setting
7.Power button

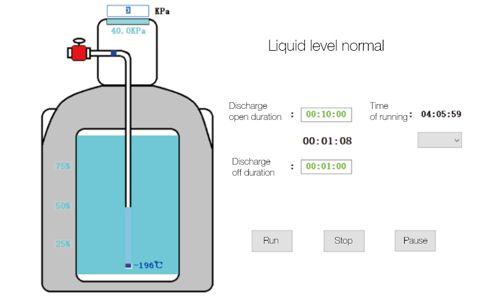

Control on PC:
CryoPump 2000A is also supplied with controlling program for
computer, to monitor its working status and make settings
according to the demand.
Therefore, CryoPump 2000A offers the remote control without
operater on site.
| Model | CryoPump 2000A |
| Static evaporation rate | < 0,5 liters per day |
| Flow rate | Pre-set on 40 mBar (adjustable) |
| Maximum working pressure | < 300 mBar |
| Reaction time | +/- 1 minutes for cooling down the fill line (with 1.6 meters fill line) |
| Power connection | 115V / 230V AC with supplied power supply or 12-24 Volt AC/DC |
| Power consumption | average 10 Watts, during pumping 50 watts |
| Standard fill line | 6.25 mm OD, 4 mm ID PTFE tube, with 32mm foam insulation |
| System includes | Dewar, pump, fill line 1.6 m, phase separator, power supply, cables, 2 level sensors, PC software. |
| Working modes | Automatic fill control with timer (1 sensor) |
| External control | 5 volt signals for ON, OFF and RS232 signals for ON, OFF |
| PC software | Monitor software, to monitor pump and data logging |
| Alarms/warning acoustical/ visual / mechanical | Dewar empty, Dewar 5 liters LN2 left, broken sensor(s), frozen alarm, |
| Options | Adaptor with sensor for Bruker detectors Adaptor for Shimadzu AIM8800 or similar Custom built adaptor to fixate sensor(s) on application Transport trolley 5 wheels (10 cm height)Stand for pump (when Dewar is refilled) |
