-86°C ULT Freezer, BioSafe-ECO

ANTECH offers advanced BioSafe ULT freezers with optimized cooling system and ergonomic design. Both upright freezers and chest freezers are available, from 100 liter compact freezer to 838 liter large volume biobanking freezer. Various of high efficiency cooling systems to meet different requirements of users. Cutting age inverter technology (BioSafe-IC) and dual compressor cooling technology (BioSafe-DUAL) are adopted on ANTECH ULT freezers, providing lowest energy consumption & highest level protection.

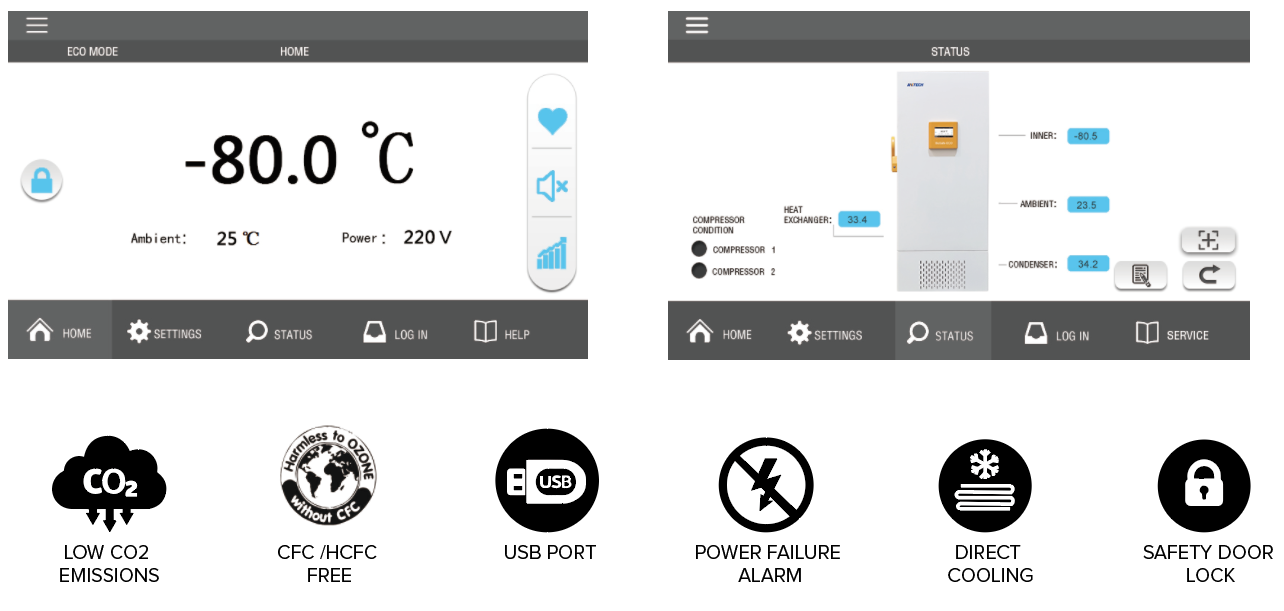

TC-310 touch screen controller

TC-310 smart control system is adopted for easy observation and convenient operation.

1. 7” LCD touch screen: sensitive touch, user-friendly HIM;

2. Large display of chamber temperature, easy observation at distance;

3. Status icon to show freezer situation at first sight: normal or abnormal;

4. Password administration to prevent unauthorized change of settings;

5. Show temperature curve on touch screen;

6. Temperature and event data storage and USB port for download.

Performance

1. Optimized cooling system & high efficiency hydrocarbon refrigerant.(Biosafe-ECO system)

2. SECOP brand compressor & EBM brand blower.

3. VIP (vacuum insulation panel) + high density polyurethane forming for insulation.

4. Forming inner doors for better insulation

Ergonomic Design

1. 7-inch touch screen for easy operation

2. Forming inner doors with door seal for better insulation and less frost

3. Adjustable stainless steel shelves to load different size products

4. Pressure release port for easy opening of outer door

5. Ultra-quite design reduces noise level

6. Optional sliding drawer rack & side access rack for 2ml vials, 5ml vials or SBS boxes

Alarms

1. High/low temperature

2. High ambient temperature

3. Door ajar

4. Power failure

5. Sensor error

6. Abnormal voltage

7. Controller failure

8. Low battery

9. Condenser malfunction

Safety

1. Build-in data storage and USB port for download

2. Temperature quick check via temperature curve

3. Password protection avoids key parameters unauthorized change

4. Safety door lock, preventing unauthorized access

5. Access port for additional temperature probe

6. Remote alarm contacts

7. Optional online monitoring system

8. Optional CO2/LN2 backup system

Environment Friendly

1. Natural refrigerant compliant with EPA and SNAP non-ozone depleting mandates (only for Biosafe-ECO series)

2. CFC-Free polyurethane foaming insulation

3. High efficiency cooling system for lower energy consumption and less carbon emission


ModelMDF-86U340TMDF-86U408TMDF-86U588TMDF-86U728TMDF-86U838T
Main specificationsTypeUprightUprightUprightUprightUpright
Cooling technologyCascade coolingCascade coolingCascade coolingCascade coolingCascade cooling
Temperature setting  range   (°C)  -40-86 -40-86 -40-86 -40-86 -40-86
Climate typeNNNNN
Capacity  (L) 338408588728838
2" box  storage Qty  (Pcs) 192288400504600
Net weight    (KGs) 296292335380397
Intermal W×D×H  (mm) 488×607×1140606×575×1180606×738×1310963×571×1350894×718×1310
Extermal W×D×H    (mm) 854×1072×1907891×992×1945.5891×1155×1994.51248×975×1994.51179×1135×1994.5
Cooling typeDirectDirectDirectDirectDirect
DefrostManualManualManualManualManual
RefrigerantHydrocarbon gasHydrocarbon gasHydrocarbon gasHydrocarbon gasHydrocarbon gas
Number of compressor22222
Control & display systemControllerTC-310TC-310TC-310TC-310TC-310
Display7" LCD touch   screen7" LCD touch   screen7" LCD touch   screen7" LCD touch   screen7" LCD touch   screen
Temperature display accuracy 0.10.10.10.10.1
Password protectionYesYesYesYesYes
Temperature graphYesYesYesYesYes
PowerPower   supply (V/Hz)220V/50Hz220V/50Hz220V/50Hz220V/50Hz220V/50Hz
Rated power (W)620650690710720
Data memory & monitoring USB   portYesYesYesYesYes
RS 485 portYesYesYesYesYes
Cloud monitoring  (Wi-Fi) CryoMonitor   2000TF, optionalCryoMonitor   2000TF, optionalCryoMonitor   2000TF, optionalCryoMonitor   2000TF, optionalCryoMonitor   2000TF, optional
Chart recorderOptionalOptionalOptionalOptionalOptional
Alarm functionsVisible/audible   alarm YesYesYesYesYes
High/Low tempYesYesYesYesYes
Hot condenserYesYesYesYesYes
Power failure YesYesYesYesYes
Sensor failureYesYesYesYesYes
High ambient tempYesYesYesYesYes
Door openYesYesYesYesYes
Power failure backup system    (alarm) 72h72h72h72h72h
Remote alarm contactYesYesYesYesYes
AccessoriesInner door22222
CastersYesYesYesYesYes
Test access portΦ25mm Φ25mm Φ25mm Φ25mm Φ25mm
Adjustable shelves33333
Safety door lockYesYesYesYesYes
Pressure equalization portYesYesYesYesYes
Freezer rackOptionalOptionalOptionalOptionalOptional
Rack type  (LxH) 4x44x5&4x45x54x5& 4x65x5
Rack Qty128+81618+624
CO2/LN2 backup systemOptionalOptionalOptionalOptionalOptional
MaterialExteriorPowder   coated steelPowder   coated steelPowder   coated steelPowder   coated steelPowder   coated steel
InteriorStainless   steelStainless   steelStainless   steelStainless   steelStainless   steel
InsulationPolyurethanePolyurethanePolyurethanePolyurethanePolyurethane
Vacuum insulation panel    (VIP) YesYesYesYesYes
Cabinet insulation thickness    (mm) 150100100100100
Outer door thinkness  (mm) 105105105105105
Compressor brandSECOPSECOPSECOPSECOPSECOP
ShippingGross   weight  (KGs) 306317364400430
Packing    W×D×H  (mm) 950*1090*2070960*1035*2120970*1190*2210 1333*1010*22101275*1165*2210
Volume  (m³) 2.142.752.552.973.03
