Specially designed for organic solvent drying
LyOrganic series freeze drying system is designed for applications dealing with organic solvent. Typical examples include HPLC fractions with organic or inorganic solvents, such as acetonitrile, TFA and other alcohols, or other products with t-butanol, DMSO, etc.
Special system configurations for safety:
LyOrganic series freeze dyers are compact in design, high-efficiency in performance, smart in operation, and dependable in daily use.
- Safe: no sources of ignition, such as commonly used Pirani vacuum sensors
- Durable: high-quality materials for excellent chemical resistance, such as coated stainless steel ice condenser,
mineral glass drying chamber, and solvent-resistant seals
- High performance internal condenser; most solvents are frozen or liquefied in the chamber at −105°C
- Solvent-resistant oil-free vacuum pump
Innovative features
- Compact, high-performance laboratory systems with a small footprint
- 7” touch screen installed with LyoSmart operating system
- Programmable freeze-drying steps
- Controlled vacuum degree for optimized process times
- Built-in ice condenser coils for higher efficiency
- Fast defrost via integrated hot gas
- Automatic non-return venting valve
- Capacitive vacuum sensor
- Low noise level: 54 dB(A)
- Solvent-resistant oil-free vacuum pump

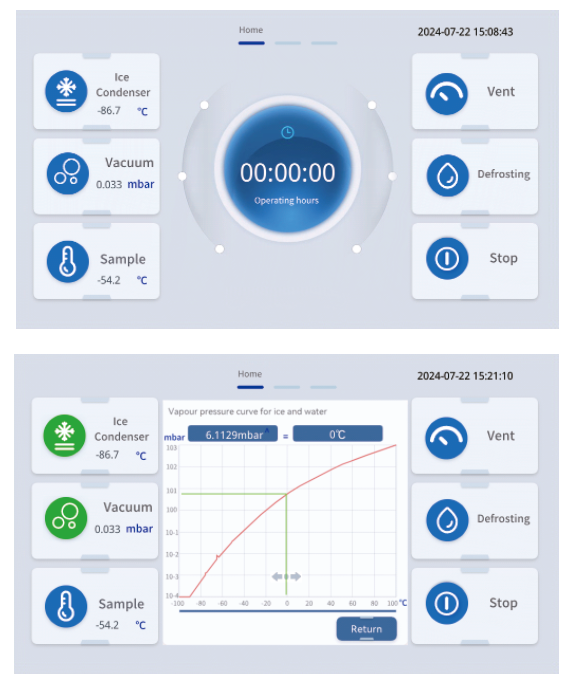

LyoSmart operating system
7” touch screen controller, installed with advanced LyoSmart operating system, assisting users to optimize the freeze-drying process.
- Display of ice condenser temperature and vacuum
- Indirect product temperature determination based on vapor pressure curve
- Manual or automatic drying process optional
- Programmable freeze-drying steps
- Vacuum degree of each step can be set and controlled independently
- Historical data recorder for convenient analysis of processing
- Password access protection
Vacuum degree control
- The vacuum degree and duration of each step can be set and controlled at auto mode
- Vacuum control to reduce drying times by up to 40%
- Real-time vacuum degree is displayed on the screen
- Capacitive vacuum sensor
Various “one button” mode
- One-button start: in auto mode, press "START" to start process according to preset program
- One-button stop: vacuum valve shut off automatically
- One-button vent: aeration valve controls vacuum vent gradually
- One-button defrosting: hot air defrosting of cold trap, to enter a new process faster
Advanced cooling system
- -105°C: 2-compressor cascade system, suitable for organic solvents with ultra low freezing points
- SECOP brand compressor for durable use
