Microbial Bioreactor

Main material: 316L stainless steel top + borosilicate glass (acid, alkali, high temperature resistance).

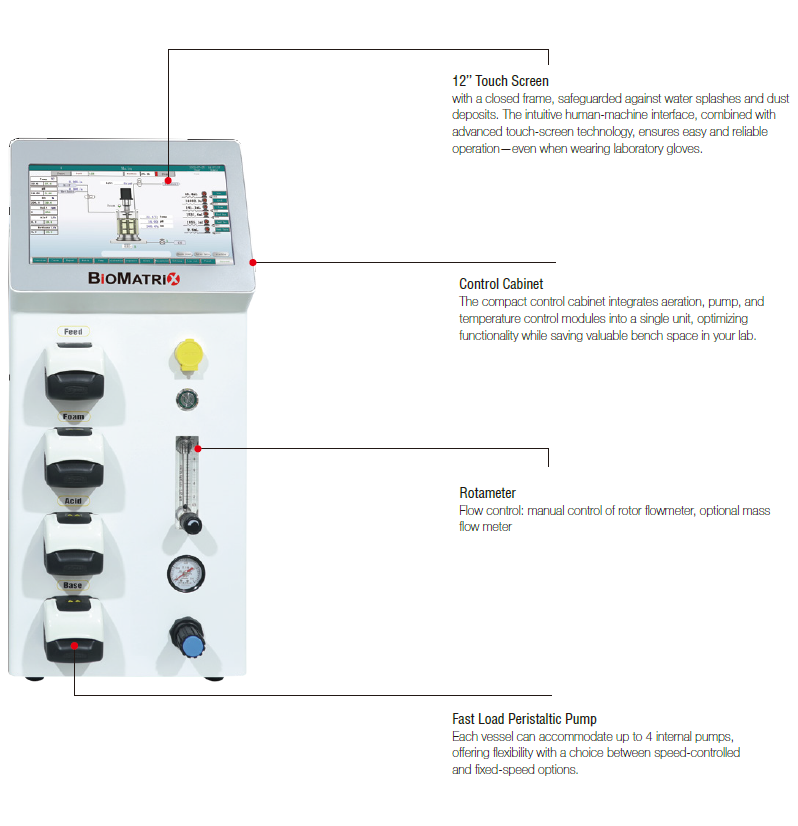

Configure one air intake (air) including: rotameter,mass flow meter, 2-stage sterilization filter, non-return valve, etc.,

to ensure that the air enters the tank aseptically

The controller can realize: DO correlation cascade, curve analysis, batch report analysis, alarm, data storage, etc.

Control module system without water, independent temperature control for each tank;

Temperature control range: 5-55 ℃, accuracy: ±0.1℃.

PID precise control, manual, automatic, sequential control and other modes of control.

Using intelligent PID control, high control accuracy, and it is not easy to fluctuate, peristaltic pump switch to control

the flow of acid and alkali, automatic control, automatic measurement.

The electrode can be sterilized repeatedly, and the calibration function is completely calibrated by the system software.

The DO value is controlled in association with the speed, replenishment, airflow (if configured) and other parameters.

Control range: 0~150%, ±3% fermentation process sequence control (according   to fermentation time, DO automatic

variable control, at least 10 stages)

BioVita G is an on-site controller designed for Siemens S7-200 series PLC, offering a stable and versatile solution

for automation, especially in manufacturing process control. Its modular design enables easy implementation

of distributed configurations. The system features a 10-inch LCD touchscreen with an intuitive English menu,

supporting direct on-site operation and data transmission to a host computer for analysis.

      - Correlation: DO control via speed, airflow, pressure, feeding; pH control via acid/alkali

Measurement Functions:

    -Supports pH, feeding, and anti-foam monitoring

Data Processing:

System Protection & Customization:

      - Independent module-based parameter transmission for easy maintenance

Real-time Monitoring:

     -Displays system status, hardware conditions, and fault identification for pumps, heating, mixing, etc.

The system integrates Siemens S7 software and FORCE CONTROL, utilizing Siemens S200 PLC for data collection

and control. It ensures high precision, adaptability to various sensors, and robust anti-interference capabilities.

Mass Flowmeter

(automatic control)
