Low Temperature Plasma Sterilizer

View Other Series

Low-temperature plasma sterilizers provide an efficient sterilization solution for heat and moisture sensitive medical equipment in CSSDs, Hospitals, Respiratory and Gastroenterology Endoscopy Clinics etc. It includes products of synthetic and polymer materials, medical optical systems, medical electric instruments and electrical power cables, rigid endoscopes, ultrasonic medical devices, sensors, medical devices etc.

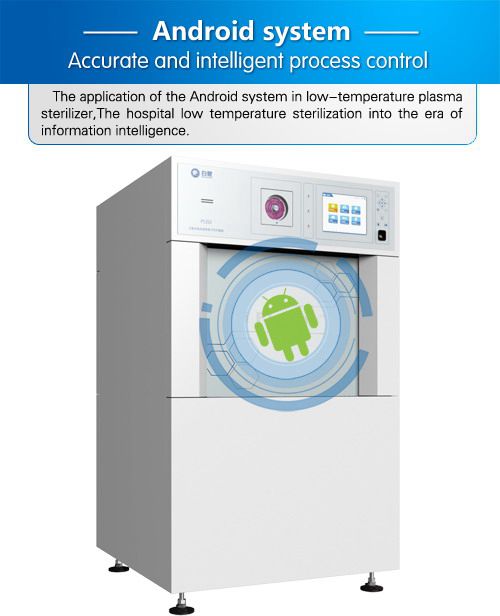

The first manufacturer in the world to apply Android system to plasma sterilizer, which indicates that infection control equipment break into informational and intelligent age.

The first manufacturer in the world to apply fingerprint identification to plasma sterilizer, which is easier and faster for operators to enter the interface, and increases the traceability.

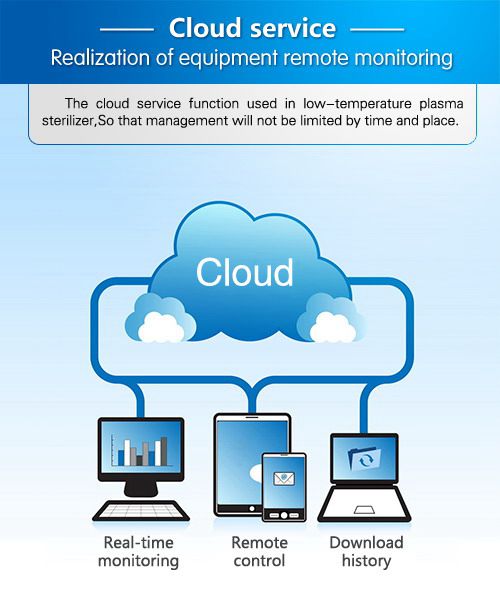

The first plasma sterilizer in the world to be equipped with cloud service realizes the real-time monitoring anytime and anywhere.

The first plasma sterilizer in the world to have the function of text message notification informs the operator of running status, the sterilization start and finish time, equipment fault and maintenance, etc.


Low Temperature Plasma Sterilizer








Features:

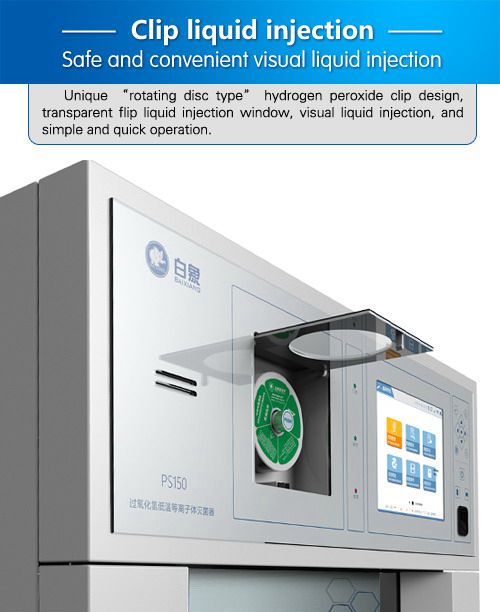

    Liquid injection: the unique "rotary" clip liquid injection technology (PCT patent protected in over 150 countries).

    With transparent liquid injection observing windows, clip usage is under check at any time.

    RFID technology: RFID chips built-in the clip to help the identification, reading and writing of data through radio signals.Built-in biological incubator to cultivate up to eight.

    The dual-channel injection by evaporation and purification prevents the liquid hydrogen peroxide from entering into the cabin, thus enhancing the penetration of hydrogen peroxide, so as to ensure uniform distribution of the atomization state of hydrogen peroxide.

    The Android operating system realizes the precise and effective one-button operation of the entire sterilization process. Ethernet interface and USB interface enables monitoring of the running state of the machine through network; the

    Data can be read and downloaded; the materials printed out with its dot matrix printer can be stored for a long time.

    Clip accumulator device enhances the safety; aluminum alloy sterilization cabin has good thermal conductivity, ensuring the balance of temperature in sterilization cabin and enhancing the stability of the sterilizing effect.

    Control system: controlled by computer, it can self-test failures and save sterilization records for 3 years.

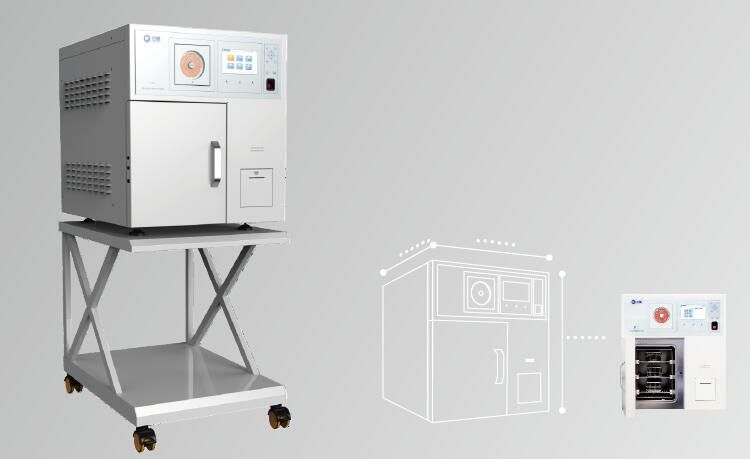

Model: PS60T
Dimensions (LxWxH): 750mm x 650mm x 835mm
Effective volume: (rectangular) 60L
Sterilization temperature: sterilization chamber temperature 45°C to -55°C
Working power supply: 220V/50Hz 10A 2000W
Clips: Each clip contains 12 capsules, and each clip can be used for 6 circulations

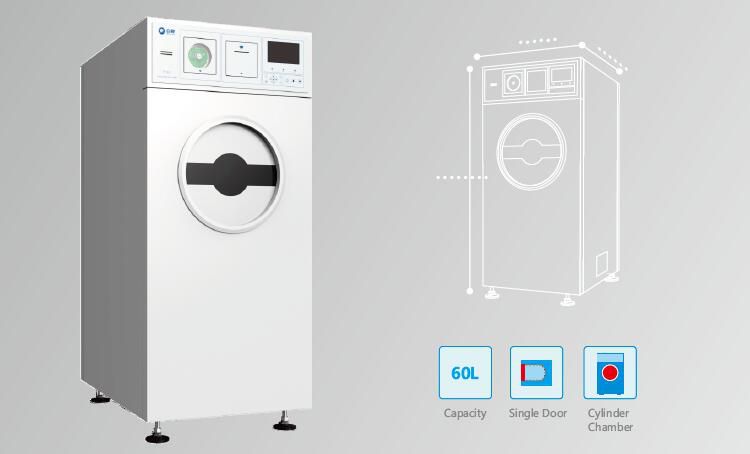

Model: PS60
Dimensions (mm): 1700 x 900 x 1000
Effective volume: 60L
Open the door: single door
Sterilization Mode: Standard sterilization / Intense sterilization
Sterilization temperature: 35°C to -45°C
Operating temperature:> 5℃, <55℃
Humidity: 0%-95%
Working power: 220V ± 22V, 50HZ ± 1HZ

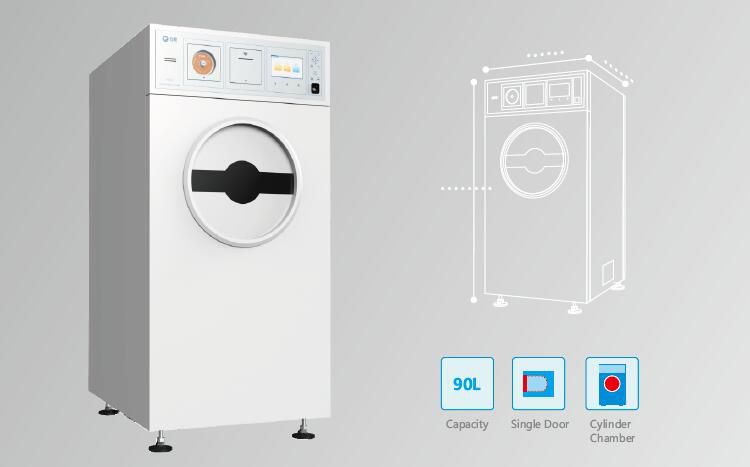

Model: PS90
Dimensions (mm): 1720 × 920 × 1040
Effective volume: 90L
Door: single door
Sterilization Mode: Standard sterilization / Intense sterilization
Sterilization temperature: 35°C to -45°C
Operating temperature:>5℃, <55℃
Humidity: 0%-95%
Working power: 220V ± 22V, 50HZ ± 1HZ

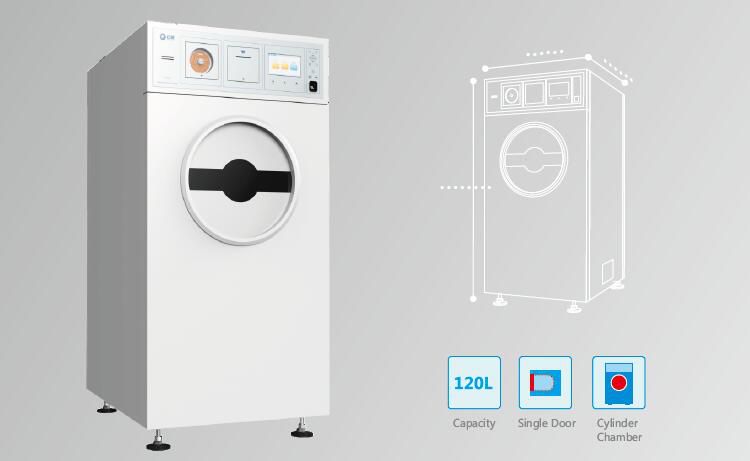

Model: PS120
Dimensions (L × W × H): 1730mm x 890mm x 1025 mm
Door: single door
Effective volume: 120L
Sterilization Mode: Standard sterilization / Intense sterilization
Sterilization temperature: the sterilization room temperature 45 ° C to -55 ° C
Working power supply: 380V/50Hz 20A 3000W
Clip: Each clip contains 12 capsules, and each clip can be used for 6 cycles

Model: PS120D
Dimensions (L × W × H): 1730mm x 890mm x 1025 mm
Door: double door
Effective volume: (cylindrical) 150L
Sterilization Mode: Standard sterilization / enhanced sterilization
Sterilization temperature: the sterilization chamber temperature 45 ° C to -55 ° C
Working power supply: 380V/50Hz 20A 3000W
Clip: Each clip contains 12 capsules, and each clip can be used for 6 cycles

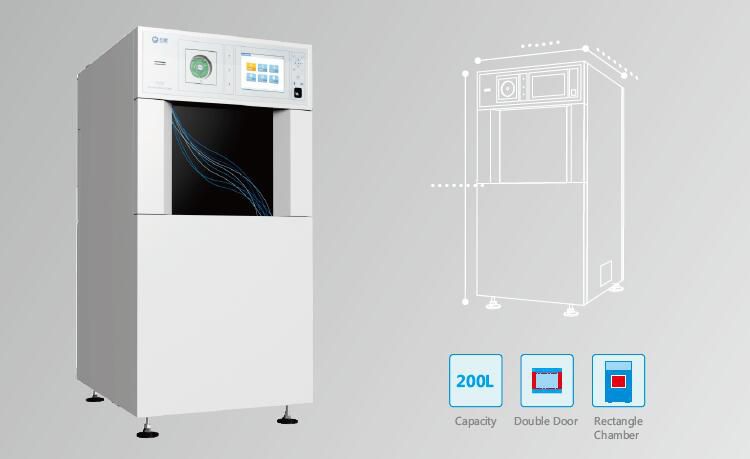

Model: PS200D
Dimensions (L × W × H): 1725mm x 835mm x 1080 mm
Door: double door
Effective volume: (cylindrical) 200L
Sterilization Mode: Standard sterilization / enhanced sterilization
Sterilization temperature: the sterilization chamber temperature 45 ° C to -55 ° C
Working power supply: 380V/50Hz 20A 3000W
Clip: Each clip contains 12 capsules, and each clip can be used for 6 cycles.

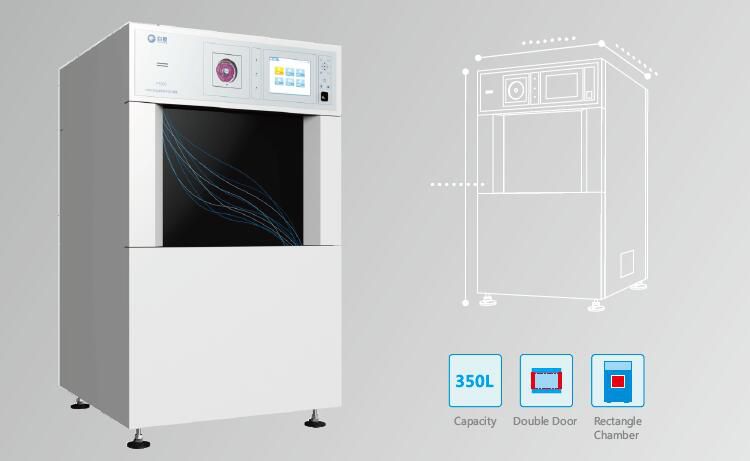

Model: PS350D
Dimensions (L × W × H): 1780mm x 1050mm x 1080mm
Door: double door
Effective volume: (rectangle) 350L
Sterilization Mode: Standard sterilization / Intense sterilization
Sterilization temperature: the sterilization room temperature 45 ° C to -55 ° C
Working power supply: 380V/50Hz 20A 3000W
Compartment shelves: three / two interchangeable
Clip: Each clip contains 12 capsules, and each clip can be used for 6 cycles
