Home Products Clean Bench / Laminar Flow Cabinet Horizontal Clean Bench, Detached Type

Horizontal Clean Bench, Detached Type

View Other Series

A laminar flow cabinet (clean bench) or tissue culture hood is a carefully enclosed bench designed to prevent contamination of semiconductor wafers, biological samples, or any particle sensitive materials. Air is drawn through a HEPA filter and blown in a very smooth, laminar flow towards the user. The cabinet is made of stainless steel with no gaps or joints where spores might collect.

Such hoods exist in both horizontal and vertical configurations, and there are many different types of cabinets with a variety of airflow patterns and acceptable uses.

Main Features

    Detached working area for low vibration

    HEPA filter efficiency ≥99.99%(@0.3μm)

    Per-filter to prolong lifetime of main filter

    Tempered glass window with Japan lifting system

    SUS304 working area for easy cleaning

    Adjustable fan unit & one-button velocity selection

    Inter-locking system for illuminating light & UV lamp

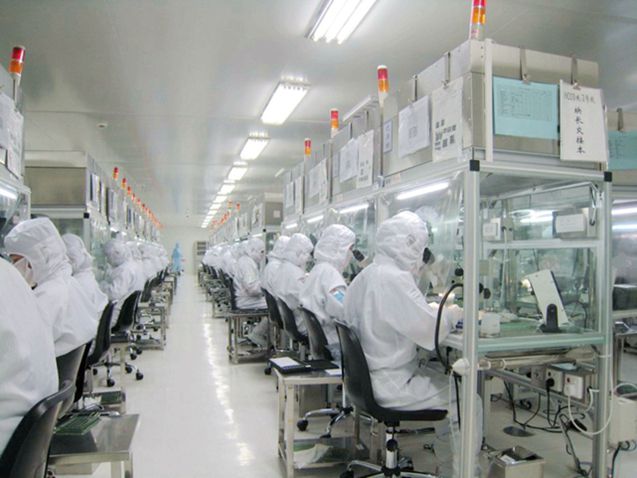

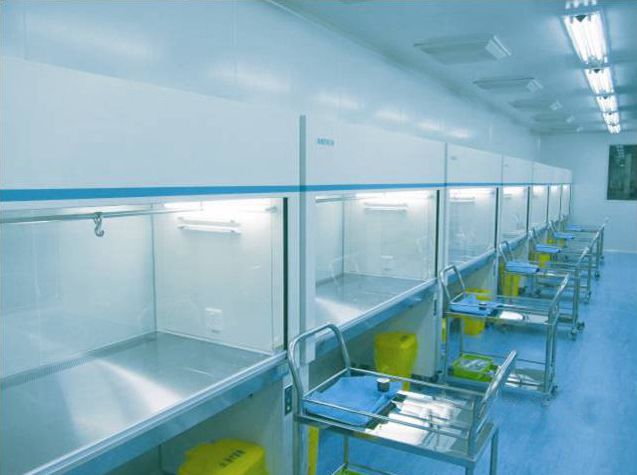

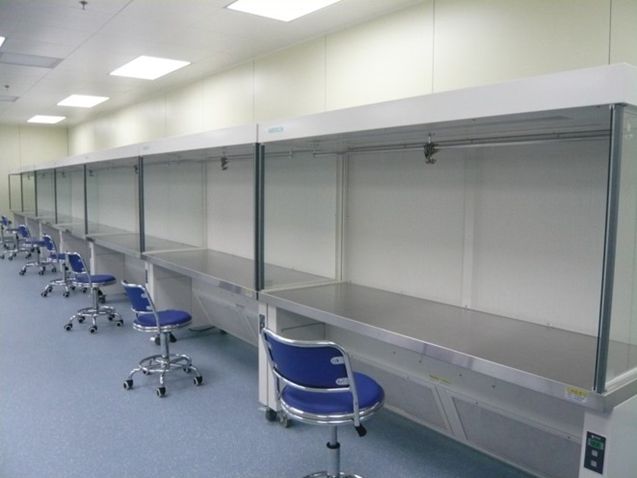

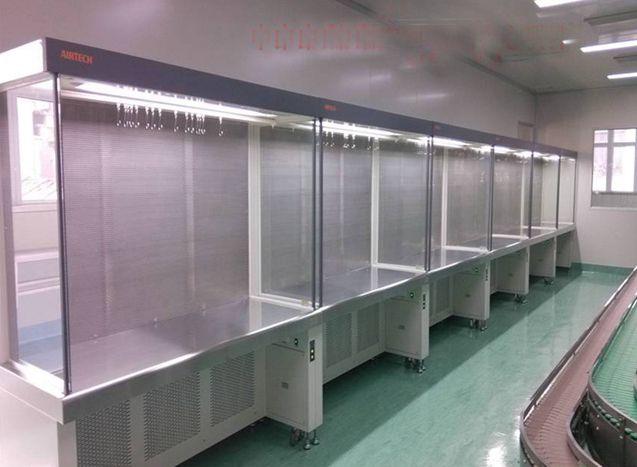

Applications of AIRTECH Various of Laminar Flow Cabinets / Clean Benchs

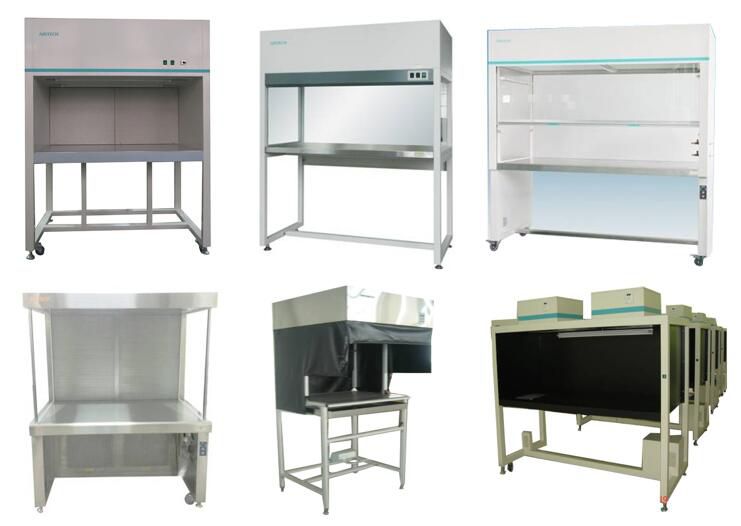

Various Customized Clean Benchs:


ModelHT-840HT-840-UHT-1300HT-1300-U
Airflow TypeHorizontal AirflowHorizonta AirflowHorizonta AirflowHorizonta Airflow
Opertion side/Operator NumberSingle-side/Single-operatorSingle-side/Single-operatorSingle-side/Double-operatorSingle-side/Double-operator
Cleanliness   ClassISO Class 5,FED 209E Class 100ISO Class 5,FED 209E Class 100ISO Class 5,FED 209E   Class 100ISO Class 5,FED 209E Class 100
Filter Efficiency≥99.99％（@0.3um）≥99.99％（@0.3um）≥99.99％（@0.3um）≥99.99％（@0.3um）
Valocity(m/s)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)≥0.3m/s(Adjustable)
Voltage/Frenquency(V/Hz)AC220V,50HZ,1ΦAC220V,50HZ,1ΦAC220V,50HZ,1ΦAC220V,50HZ,1Φ
Net Weight （kg)150150190190
Working Dimension(W*D*H)(mm)680*650*570680*650*5701140*650*5701140*650*570
External Dimension(W*D*H)(mm)840*825*1430840*825*14301300*825*14301300*825*1430



No.NameNote
1Electric SocketStandard
2SupporterStandard, integrated
3LightStandard, LED
4U.V.LightOptional
5Gas ValveOptional
6Water ValveOptional



  Detached HT LAF-Brochure
